NRS Frame U-Bolt

$3.25$0.00
Item is in stockOnly 2 left in stockItem is out of stock Item is unavailable
Size
Quantity

Stainless steel U-bolts for NRS LoPro™ Frame Fittings and other frame accessories.

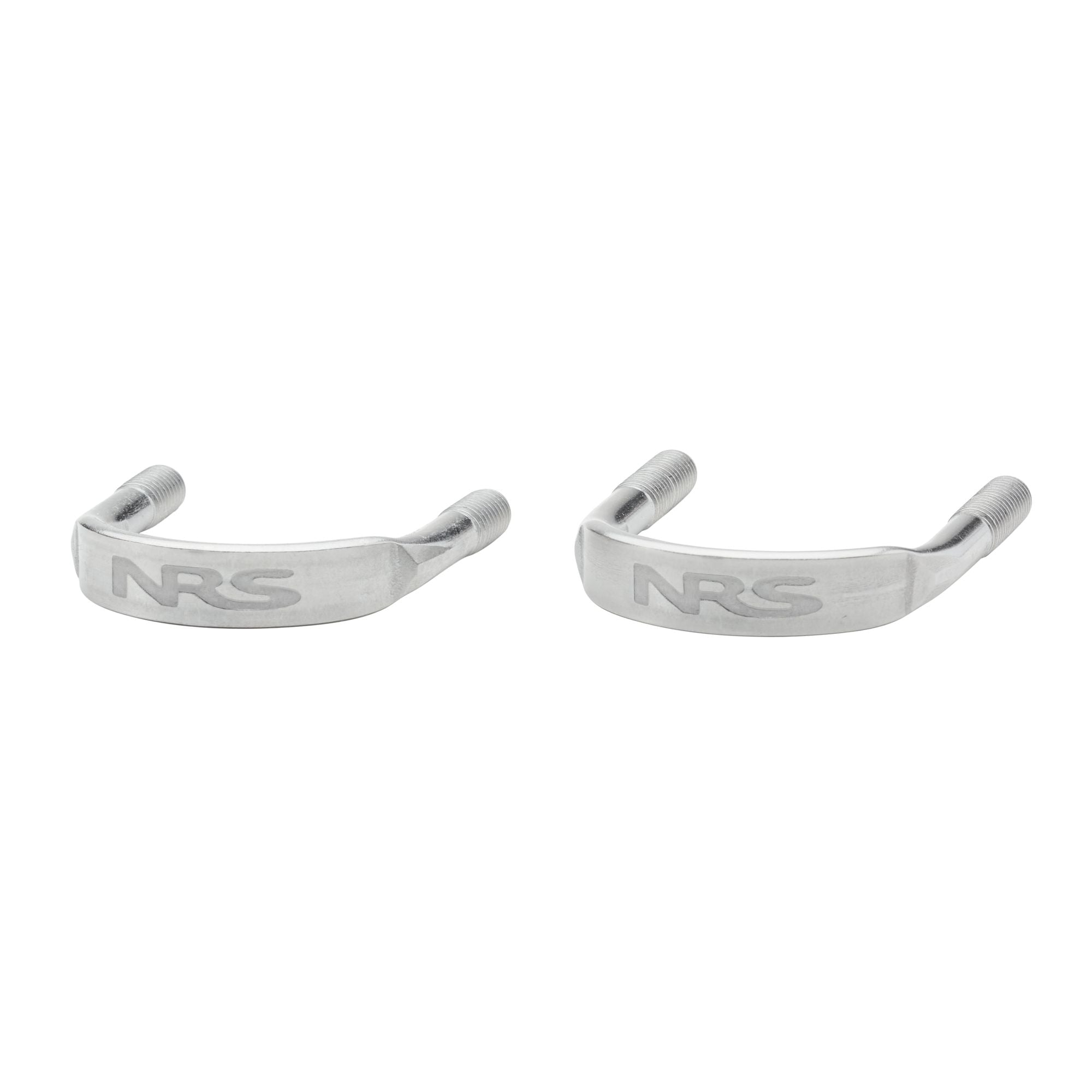

  • Curve of the U-bolt is flattened, or coined, to reduce impact on boat material. It's shaped to fit our 1 5/8 diameter frame pipe.
  • The 2 1/8 deep Standard size U-bolt is used with LoPro Frame Fittings.
  • We use the longer 2 5/8 deep Oversized U-bolt with our Raft and Cataraft Anchor Systems, Lower Cat Rail Spreader Bars and Cataraft Frame Aluminum Floors. Folks building their own custom frames may also find use for these U-bolts.
  • Tips of threaded shanks are rounded, eliminating sharp edges.

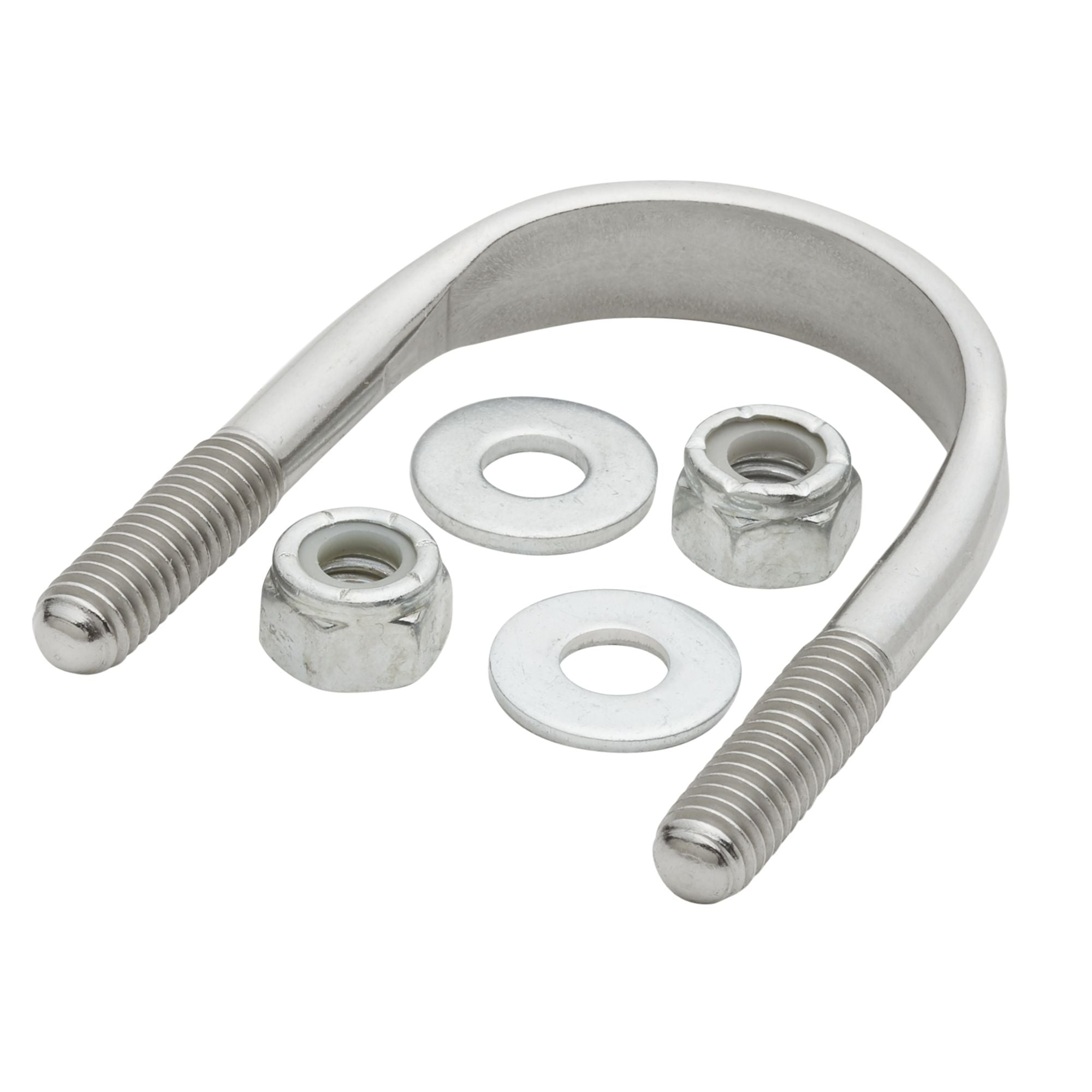

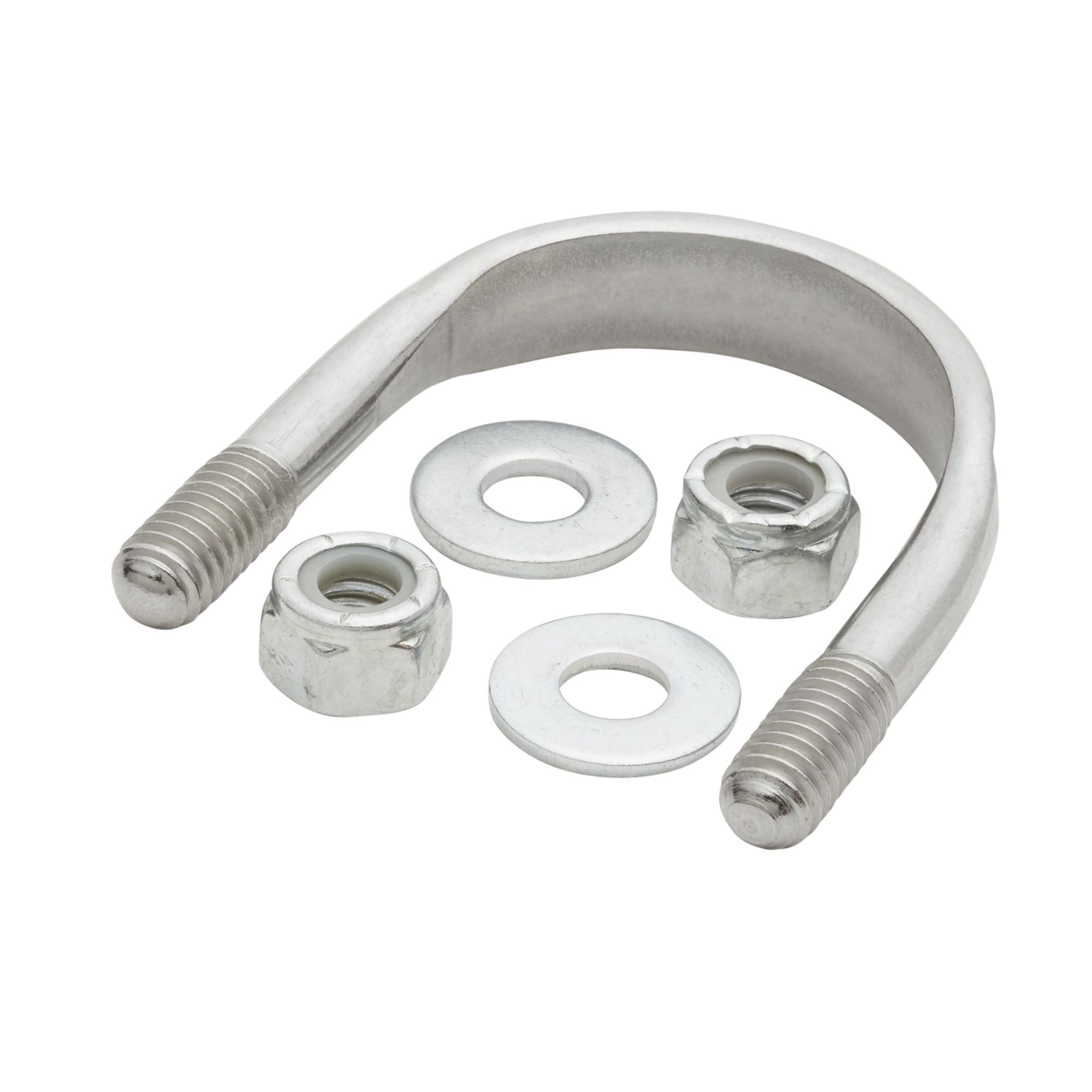

  • Each U-bolt comes with two 1/2 zinc-coated nylon locknuts and two zinc-coated flat washers. Bolt thread is 5/16-18.
Category:
  • Frame Parts
Weight: Single bolt with nuts & washers is 0.1 lbs.
Included Components:
  • 1 - U-bolt with nuts and washers
Notes:
  • Bolt thread is 5/16-18
  • Rounded bolt tips

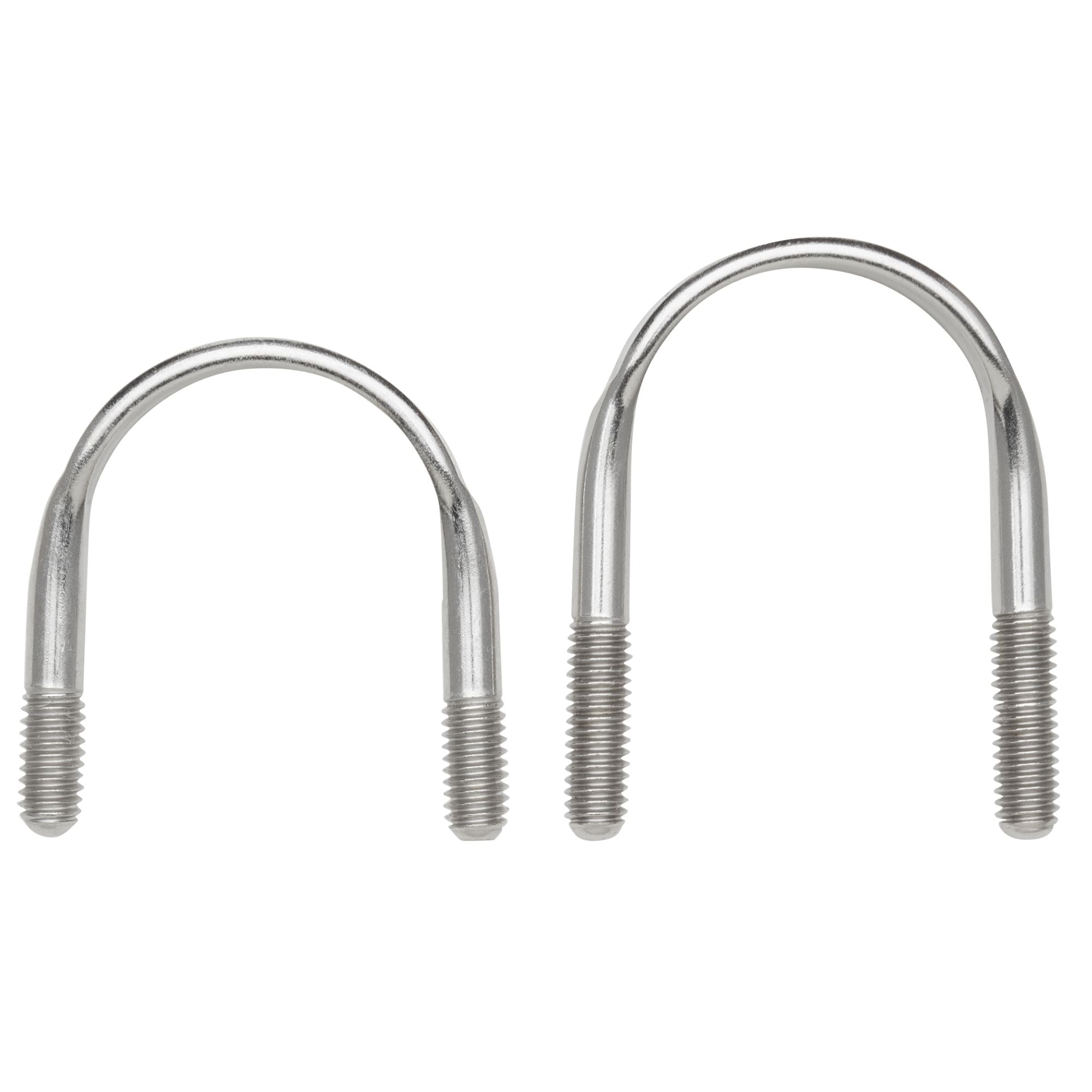

U-bolts

Size A B
Standard 2 1/8 1 5/8
Oversized 2 5/8 1 5/8
